Cantilever Shadeports in Durban: Shade Cloth Carports With No Front Poles
A cantilever shadeport carries its shade cloth on arms that reach forward from columns along the back edge, so the front of every parking bay stays free of poles. Shadeports Durban installs single cantilevers from R18,900, doubles at R25,890 and triples at R29,990 (2026), for steep Berea driveways, North Coast complexes and office parking across eThekwini.
Call 062 397 4233 (Monday–Friday, 08:00–17:00) or use the form for a free quote.
How a Cantilever Shadeport Works

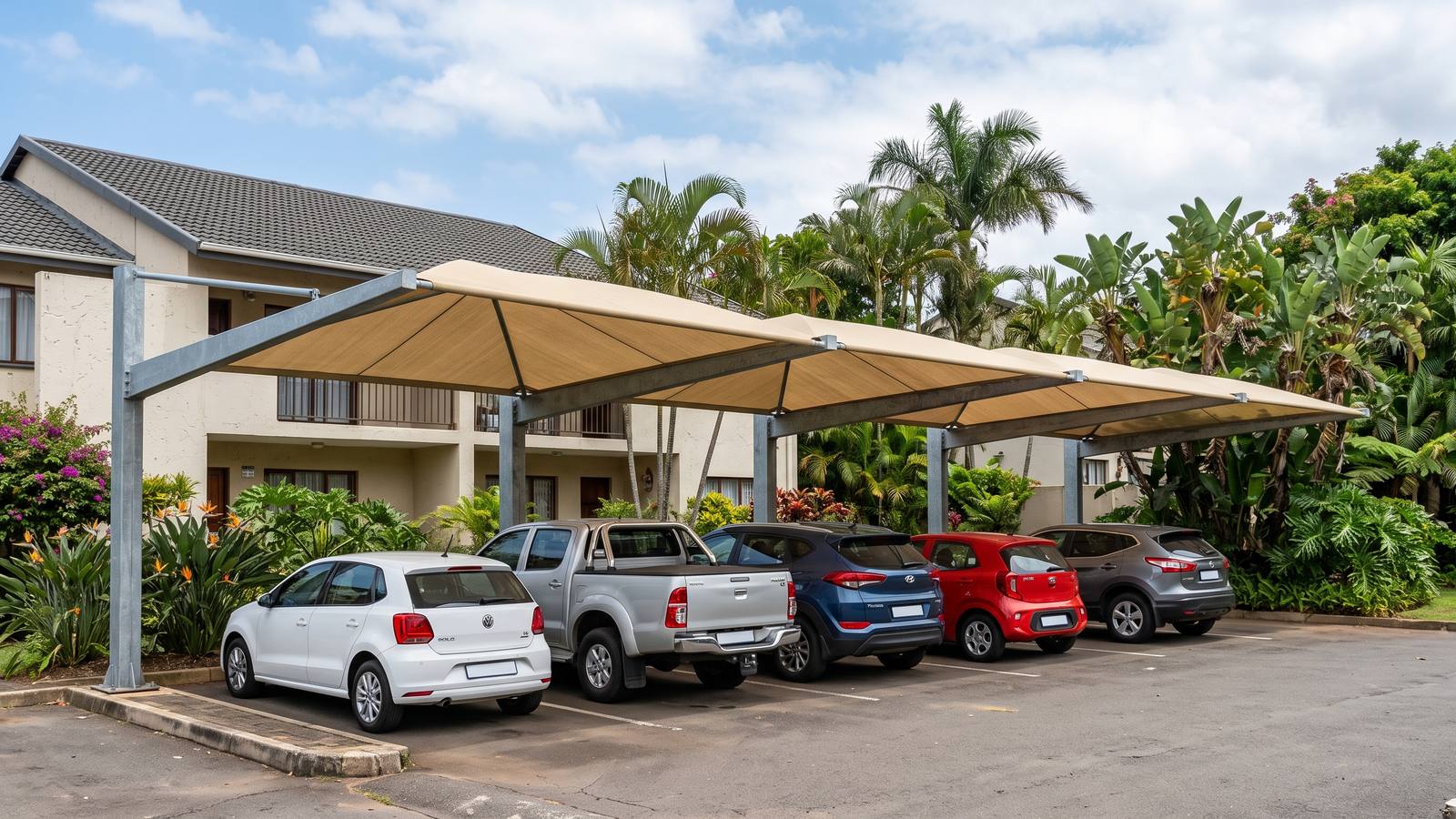

The rear columns carry the whole roof as a lever. Each column holds a braced arm that projects over the bay, and the shade cloth is tensioned between the arms with perimeter cable. Because the load sits on one side, the columns are heavier-gauge tube and the footings are larger and deeper than on a four-post shadeport.
When a Cantilever Shadeport Suits a Durban Site
- Narrow and sloping driveways. Berea, Glenwood and Upper Highway driveways often leave no room for front poles beside a reversing car.
- Complex and office parking. A row of bays with one continuous open edge lets cars park nose-in without pole strikes.
- Gates and garage doors. Sliding gates and tip-up garage doors clear a cantilever that a front pole would block.
- Retaining walls. Columns can stand on the high side of a retaining wall while the arms cover the bays below, subject to the wall and footing check.
Cantilever Shadeport Prices in Durban
| Size | Cantilever installed | Four-post installed | Difference |
|---|---|---|---|
| Single | R18,900 | R10,500 | +R8,400 |
| Double | R25,890 | R13,500 | +R12,390 |
| Triple | R29,990 | R17,500 | +R12,490 |
The premium buys heavier steel, braced arms and bigger footings. Every size and add-on is listed under shadeport prices in Durban.
Cloth, Membrane and Coastal Finish
Cantilever arms take 95 percent knitted shade cloth as standard, or the PVC-coated membrane of waterproof shadeports for bays that must stay dry through the summer rain. A membrane catches more wind than cloth, so a waterproof cantilever gets closer fixings and firmer tension. Coastal complexes from Umhlanga to the Bluff get powder-coated columns over the galvanising.
Approval for a Cantilever Shadeport
A cantilever needs the same written municipal permission as any shadeport. A single or double stays under the 40 m² minor-building-work limit, and a triple exceeds it and needs building plans. Sectional-title complexes need trustees' consent before the structure goes on common property.
Shadeports Durban: Frequently Asked Questions
How much is a cantilever shadeport in Durban?
A single cantilever shadeport costs R18,900 installed in Durban in 2026, a double R25,890 and a triple R29,990. That is 71 to 92 percent more than the same size on four posts.
Why choose a cantilever over a four-post shadeport?
A cantilever leaves the front of every bay free of poles. Doors open without striking a pole, gates and garage doors swing freely, and cars reverse out of tight driveways without a post in the way.
Can a cantilever go on a sloping driveway?
Yes. The columns stand along one edge, usually the higher boundary, and the arms are set level or to a chosen fall. Footing size is matched to the slope and soil at the site visit.
Do cantilevers handle strong wind?
Yes, when they are engineered for it. The roof acts as a lever on the rear columns, so cantilevers use heavier-gauge columns, braced arms and larger footings than four-post shadeports. Porous shade cloth keeps the wind load low.
